No. |
Item Name |
unit |
WSM988T50 |
|
|
1 |
Machine size |
|
mm |
11200 |
|
|
|
Length(fork on ground) |
|
|
|
2 |
|
width |
mm |
3640 |
|
3 |
|
height |
mm |
3700 |
|
4 |
Working device geometry parameters |
Curb weight |
Kg |
52000 |
|
5 |
|
Max traction force |
KN |
320 |
|
6 |
|
Fuel capacity |
L |
500 |
|
7 |
|
Hydraulic tank capacity |
L |
500 |
|
8 |
|
Axle base |
mm |
4850 |
|
9 |
|
Wheel track |
mm |
2880 |
|
10 |
|
Min turning Radius |
mm |
9500 |
|
11 |
|
Gradeability (no-load/Full load) |
% |
30/14 |
|
12 |
|
Min.ground clearance |
mm |
510 |
|
13 |
Working device geometry parameters |
Max.Lifting height |
mm |
3200 |
|
14 |
|
Fork standard size |
mm |
1600*300*155 |
|
15 |
work capacity |
Load center distance |
mm |
1000 |
|
16 |
|
Rated Load capacity |
Kg |
50000 |
|
17 |
|
Max lift capacity |
kg |
54000（H：1.6m） |
|
18 |
|
Rated power/roating speed |
Kw/rpm |
247/2200 |
|
With the improvement of the new technology, the product structure and parameters will be continuously improved ,if the sample information is not in conformity with the physical object, pls refer to the object. |
||||
|
Productname： |
Forklift Loader,(WSM988T50) |
|
Product Number： |
|
|
Product Introduction： |
|
wheel loader WSM988T50 Product specification

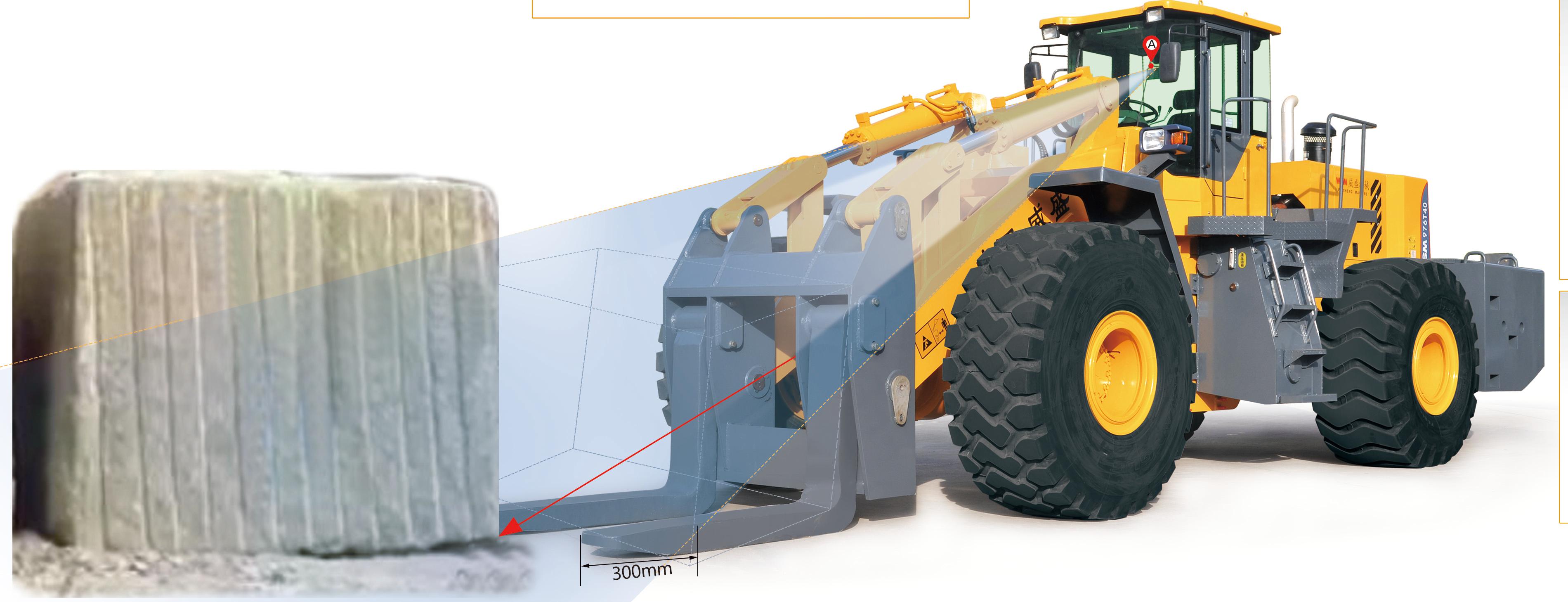

wheel loader WSM988T50 The driver A point is the height of 700mm away from the seat (normal sitting position). When the fork is horizontal, we can see the fork and fork tip fork into 300mm way.In the lifting process, the driver can see the tip and fork, it is safe to work.
wheel loader WSM988T50 Standard configuration
l China Steyr Tier 3 engine
l Transmission: ZL80
l Operation way: pilot control

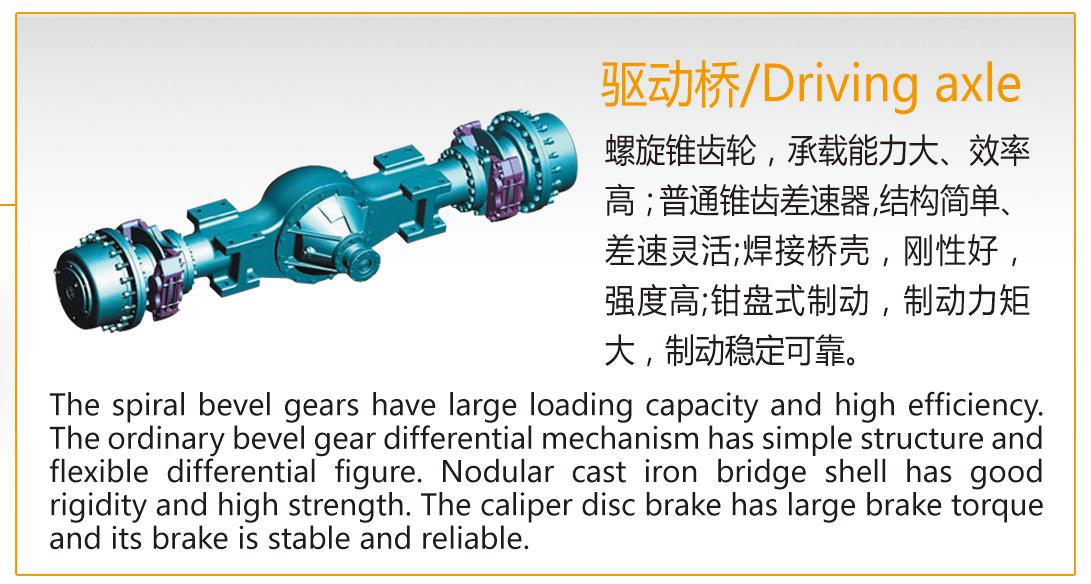

Drive axle: WSM heavy duty drive axle.
Cooling system： Large water tank，oil cooler
l Attachment: forkl

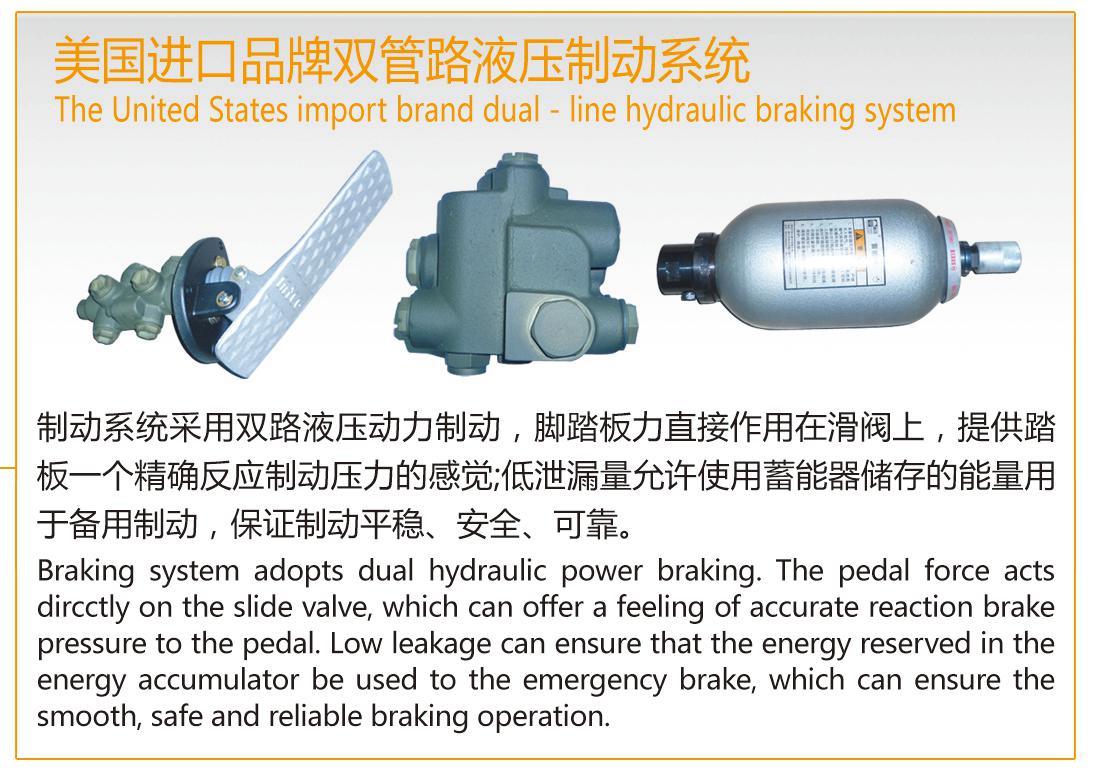

The braking system： Gas cap oil brake system
wheel loader WSM988T50 wheel loader WSM988T50 Optional parts
l Tyre protection chain
l Quick exchanged or easy-exchange bucket
l Air-conditional
l Cummins engine
l Vehicle’s terminal system (including GPS positioning, real time monitoring ,machine info)
l Distance fault diagnostic system
